5nm Battery Operated Marine Nav Lights Solar Powered Navigation Lights For Buoys
5NM | Solar Powered | IP68 Waterproof | IALA Compliant | OEM Available
The DX-ML550 is a fully integrated solar LED marine lantern engineered for buoys, beacons, and fixed coastal structures. It operates completely autonomously with four 7W monocrystalline solar panels and a high-capacity LiFePO₄ battery rated for over 15 years of service life. The lantern automatically turns on at dusk and off at dawn, and can run for up to 200 hours continuously on a full charge.
Equipped with a professional-grade acrylic optical lens, the DX-ML550 delivers high-efficiency light output in Red, Green, Yellow, White, or Blue, all in full compliance with IALA standards. With 256 selectable flash patterns and options for floating or fixed installations, it provides unmatched versatility and durability in harsh marine environments.
Constructed with UV-resistant, impact-resistant housing, and certified to IP68, the DX-ML550 is capable of operating even while fully submerged, making it ideal for saltwater exposure, high humidity, and long-term field deployment.
KEY ADVANTAGES
- Self-Contained Solar Power: Integrated system with 4×7W monocrystalline panels
- Extended Runtime: Up to 200 hours continuous operation per charge
- Long-Life Battery: ≥15 years with LiFePO₄ chemistry
- Automatic Light Control: Dusk-to-dawn photocell activation
- IALA-Compliant Colors: Red, Green, Yellow, White, Blue
- Advanced Optics: High-transparency acrylic lens for optimal light distribution
- Installation Options: Suitable for floating buoys and fixed structures
- Marine-Grade Durability: UV-resistant, impact-resistant, anti-salt-fog, IP68 waterproof
- Customizable: Supports OEM branding and packaging for project requirements
TECHNICAL DATA
| Category | Specification | Details |
| Overall Features | Operating Voltage | DC: 10.5V—14.4V |
| Solar Panels | Vertical: 4x7W |
| Charging Current | Typical value 400mA |
| Operating Temperature | -35°C to +60°C |
| Parameter Loading | RS232, Button |
| Waterproof Level | IP68 |
| Net. Weight | 9.3kg |
| Dimensions | Buoy Light: 240mm x 240mm x 489mm |
| | Fixed Light: 240mm x 240mm x 455mm |
| Packaging Dimensions | 277mm x 281mm x 537mm |
| Installation Dimensions | Compliant with domestic and international standards |
| Continuous Operation in Overcast/Rainy Conditions | ≥25 days |
| Light Features | Len material | Acrylic |
| Base material | ABS+PC |
| Light Colors | Red/Green/Yellow/White/Blue |
| Light Intensity | 256 adjustable levels |
| Daylight Threshold | Digital photosensitive, adjustable threshold |
| Beam Distance | 5-8nm |
| Emission Angle | Buoy Light ≥8°, Fixed Light ≥2.5° |
| Battery Features | Battery Type | LiFePO4 Battery |
| Battery Capacity | ≥640Wh |
TWO MODELS

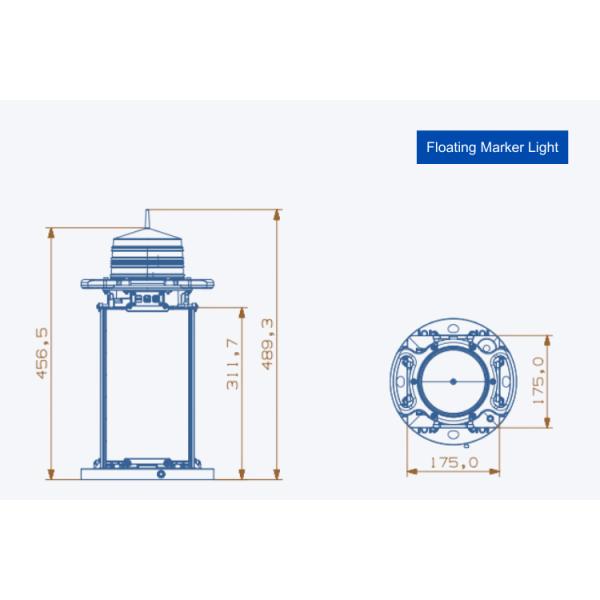

Drawings (mm)
FAQ
1. Does the DX-ML550 come with any certifications?
Yes. The product is IALA-compliant, CE certified, ROHS compliant, and comes with all relevant test reports for waterproofing, optical performance, and battery safety.
2. What is the expected delivery lead time?
In-stock standard models: 5–7 working days
Custom orders (OEM/logo/flash pattern):7–14 working days
Large volume or special project: Schedule confirmed upon order
3. What happens if the product fails during the warranty period?
We offer a 3-year warranty. For quality-related failures (non-human damage), we apply a replace-not-repair policy, especially for overseas clients. This ensures fast and efficient support.
